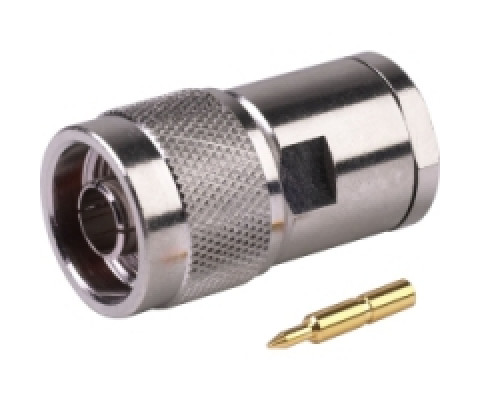

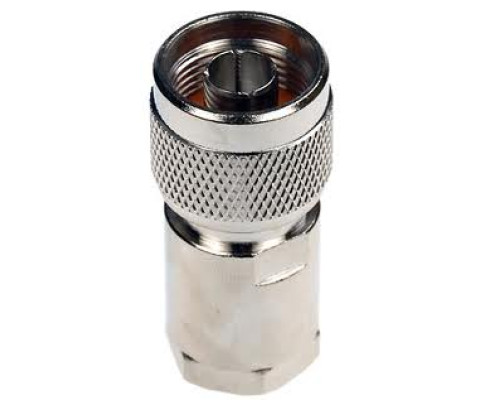

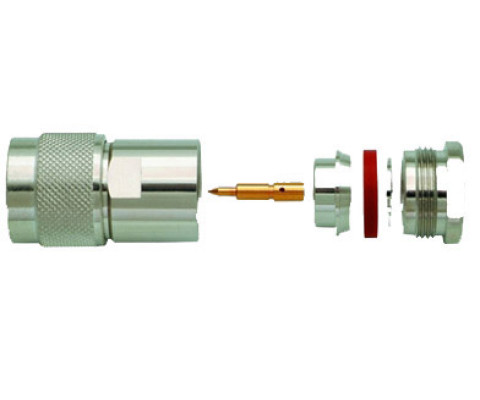

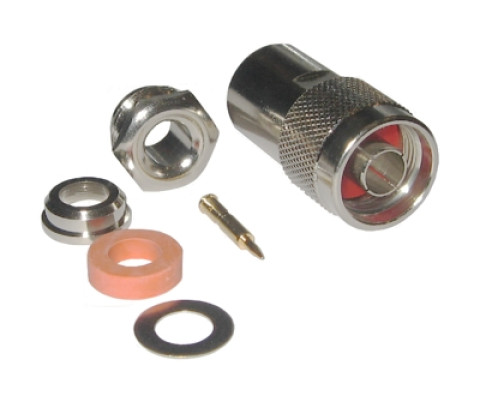

N-Male RG-8 Connector

The N-Male RG-8 connector is a high-quality N-type coaxial connector designed for reliable connection to RG-8 standard coaxial cable. This type of connector is a standard solution for a wide range of high-frequency and high-power radio frequency (RF) systems. It delivers excellent performance in the range up to 11 GHz and features a characteristic impedance of 50 Ohms, which is critical for minimizing signal loss and ensuring efficient power transfer in RF paths.

The N-Male RG-8 connector is intended for professionals and enthusiasts working with wireless networks, cellular signal booster systems, antenna systems, as well as in radio communications and test equipment. It is ideally suited for creating stable connections in systems requiring high reliability and resistance to external influences, such as outdoor antenna installations or connecting powerful transmitters. Its high mechanical strength and sealing capability allow its use in the most demanding environments, ensuring connection longevity. If you need a reliable RF connector for powerful transmitters or an N-Male antenna connection, this option is optimal. Explore our N-Male RG-8 cable connector for sale.

🎁 Expert Advice When installing the N-Male connector onto an RG-8 cable, ensure that the cable's center conductor is properly stripped and securely fastened. The outer braid should be carefully crimped or soldered to ensure maximum conductivity and minimize RF losses. Using the correct tools (crimping pliers or soldering iron) is crucial for the quality of the connection.

💡 FAQ What is an N-type connector? An N-type connector is a threaded, medium-power RF coaxial connector designed to provide a reliable connection at frequencies up to 11 GHz.

❓ What is the N-Male RG-8 connector used for?
It is used to connect RG-8 coaxial cable to antennas, repeaters, routers, spectrum analyzers, and other RF equipment where reliable 50 Ohm signal transmission is required.

❓ Can this connector be used outdoors?
Yes, thanks to its robust construction and sealing capabilities, N-Male connectors are widely used in outdoor environments, for example, for connecting outdoor antennas.

❓ What is the impedance of this connector?
The standard characteristic impedance for N-type connectors is 50 Ohms, which matches most radio frequency systems.

❓ What is the difference between N-Male and N-Female?
An N-Male connector has a central pin and internal threads, while an N-Female connector has a central receptacle and external threads, allowing them to mate.
