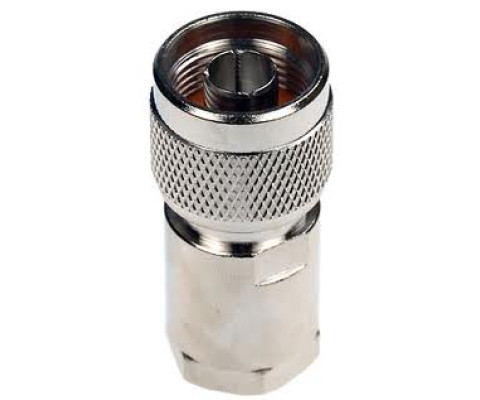

N-Male RG-213 Connector

The N-Male RG-213 Connector is a high-quality coaxial connector designed for reliable and efficient transmission of high-frequency signals. This N-type connector delivers excellent performance across a wide frequency range, ensuring minimal signal loss and high connection stability. It is specifically engineered to work with the thick and robust RG-213 coaxial cable, widely used in professional telecommunication systems.

The technology behind the N-connector is based on precision engineering, ensuring a stable 50 Ohm impedance. This is critically important for preventing signal reflections and ensuring maximum power transfer in communication lines. The N-Male design features a central pin that mates with an N-Female socket and a threaded coupling for secure fastening, making it resistant to vibrations and mechanical stress. Materials such as nickel-plated brass and gold-plated contacts ensure durability and excellent conductivity.

This high-frequency N-type connector is ideal for professionals working with radio equipment, wireless communication systems, base stations, antenna arrays, and test equipment. It is indispensable in scenarios requiring a robust connection for high-power transmitters or antennas. If you need to buy an N-connector for RG-213 for system installation or upgrade, this product will ensure stable operation in demanding environments. You can purchase an N-Male RG-213 connector for various projects, from building new networks to maintaining existing ones. It is suitable for tasks such as connecting RG-213 to an antenna or installation in repeaters. Ordering an N-Male connector is beneficial for ensuring the long-term stability of your communication system.

🎁 Expert Advice When installing the N-Male connector onto an RG-213 cable, ensure that the cable's center conductor is properly stripped and securely soldered (or crimped, if the design allows) to the connector's center pin. The outer braid must be carefully crimped or soldered to the connector body to ensure a perfect 50-ohm impedance and minimize losses. Incorrect installation is one of the most common causes of signal quality degradation.

💡 FAQ What is an N-type connector?

An N-type is a medium-sized threaded coaxial connector designed for frequencies up to 11 GHz, providing a reliable, low-loss connection, typically with 50 Ohm impedance.

❓ Why is this connector designed for RG-213 cable?

The N-Male RG-213 connector is specifically engineered to match the physical dimensions and electrical characteristics of RG-213 cable, ensuring optimal impedance matching and mechanical strength of the connection.

❓ What is the significance of 50 Ohm impedance?

50 Ohm impedance is the standard for most radio frequency systems and telecommunications. It minimizes signal reflections, ensuring maximum power transfer from the source to the load.

❓ What applications is the N-Male RG-213 suitable for?

It is widely used in radio communication, Wi-Fi systems, cellular base stations, amateur radio, and test equipment, where reliable high-frequency connections are required.

❓ How do I properly install an N-connector on a cable?

For proper installation, carefully strip the cable according to recommended dimensions, solder the center conductor to the pin, and securely crimp or screw the braid and body, following the connector manufacturer's instructions.
