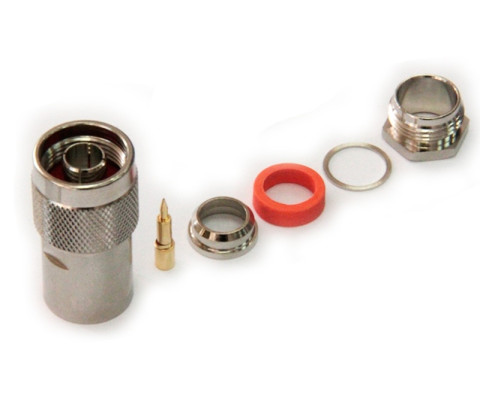

N-Male 8D-FB Connector

The N-Male 8D-FB connector is a high-quality N-type coaxial connector designed to provide a reliable and low-loss connection in wireless communication systems. This connector is specifically engineered for use with 8D-FB cable, which features low signal loss over long distances, a critical factor for high-performance solutions.

The N-type connector is a standard in radio frequency (RF) technology, utilizing a threaded coupling mechanism that ensures a strong mechanical attachment and excellent electrical characteristics, including a 50 Ohm impedance. This design minimizes the impact of external interference and ensures stable signal transmission across a wide frequency range. The N-Male 8D-FB connector is perfectly suited for projects requiring the most efficient use of 8D-FB cable, especially when connecting to outdoor antennas, cellular repeaters, base stations, or other RF equipment.

This N-connector targets professional engineers, installers of cellular amplification systems (3G/4G/5G), Wi-Fi networks, and radio enthusiasts who value connection quality and reliability. It is widely applied in scenarios where equipment is exposed to external factors, such as mounting outdoor antennas or in industrial environments. If you are looking for a high-frequency N-male connector or a quality connector for 8D-FB cable, this model is an optimal choice.

Specifications:
* Connector Type: N-Male
* Cable Compatibility: 8D-FB
* Impedance: 50 Ohm
* Connection Type: Threaded
* Application: For high-frequency communication systems

🎁 Expert Advice When installing an N-Male connector on an 8D-FB cable, it is crucial to ensure precise cable stripping and reliable crimping of both the center conductor and the braid. Use specialized crimping tools to prevent signal loss and ensure the longevity of the connection. Always check the connection with a multimeter for any short circuits between the center conductor and the shield after installation is complete.

💡 FAQ Q: What frequency ranges is this connector suitable for? A: N-type connectors are typically excellent for a wide range of frequencies, up to 11 GHz, making them ideal for use in 3G/4G/5G, Wi-Fi, GPS, LoRa, and other high-frequency applications.

❓ Q: Can this connector be used with other cable types?
A: No, this connector is specifically designed for 8D-FB cable, which has a particular diameter for its center conductor and braid. Other cable types require corresponding connectors designed for their specific geometrical parameters.

❓ Q: What is the impedance of this N-male connector?
A: This connector has a standard impedance of 50 Ohms, which is compatible with the vast majority of wireless communication systems and RF equipment.

❓ Q: What tools are needed for installing the 8D-FB connector?
A: Proper installation requires a specialized stripper for 8D-FB cable, a crimping tool for N-connectors, and potentially a soldering iron if the center conductor or shield requires soldering.

❓ Q: Is this connector resistant to outdoor weather conditions?
A: N-type connectors generally offer high resistance to moisture and dust due to their threaded connection. For maximum protection, especially in outdoor applications, it is recommended to additionally use heat shrink tubing or sealing tape at the cable-to-connector junction.
