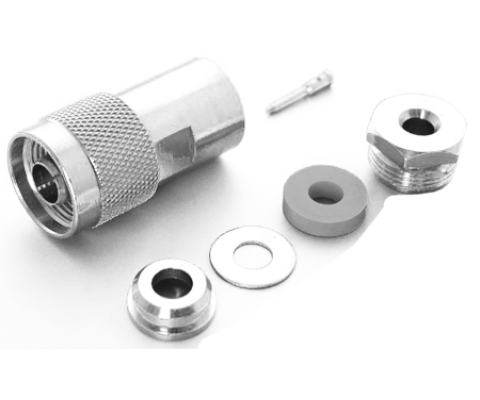

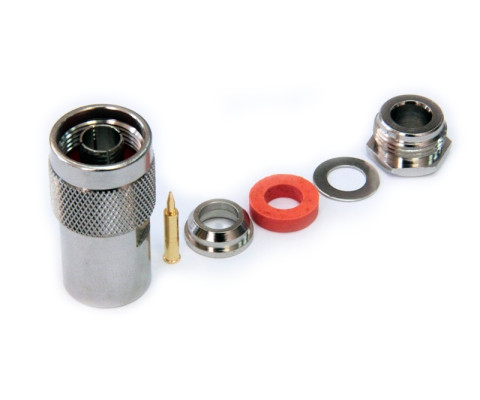

N-Male 5D-FB Connector

The N-Male 5D-FB connector is a high-quality coaxial connector designed for reliable and efficient connection of 5D-FB type cable to various radio frequency equipment. This N-type plug ensures stable signal transmission with minimal loss, which is critically important for communication systems. The N-Male 5D-FB connector is ideal for creating high-performance cable assemblies.

The connector's operation principle is based on the standardized N-type design, which provides excellent 50 Ohm impedance matching and resistance to external influences. Its construction guarantees reliable electrical contact and mechanical fixation, minimizing signal loss even at high frequencies. It is specifically designed for 5D-FB cable, ensuring perfect mating with the cable's dielectric and conductor, preventing reflections and improving system performance.

This N-plug is aimed at a wide range of users: from professional installers of communication systems to radio amateurs and business owners who need to set up a reliable infrastructure for boosting mobile communication (GSM/3G/4G/LTE), creating Wi-Fi bridges, or connecting specialized IoT equipment. Use this N-connector for connecting antennas to repeaters, modems, routers, and other equipment where a stable connection is required. Buying an N-Male 5D-FB connector is a sound investment for long-term operation.

Characteristics:
* Connector Type: N-Male (plug)
* Cable Compatibility: 5D-FB
* Impedance: 50 Ohm
* Mounting Mechanism: Crimp or screw-type
* Material: High-quality metals for durability and corrosion resistance, e.g., nickel-plated brass.
* Applications: Cellular signal boosting systems, Wi-Fi networks, radio stations, satellite equipment.

Searching for a high-quality N-connector for 5D-FB cable often leads to this model. It ensures low loss and high performance, making it an ideal choice for critical installations.

🎁 Expert Advice When installing an N-Male connector onto a 5D-FB cable, always carefully strip the cable, adhering to the manufacturer's recommended dimensions for the center conductor, dielectric, and braid. Using a specialized crimping tool will ensure the most reliable and durable connection, minimizing signal loss.

💡 FAQ Question: What types of cables is this connector suitable for? Answer: This N-Male connector is specifically designed for 5D-FB coaxial cable, ensuring optimal electrical and mechanical coupling.

❓ Question: Can this connector be used outdoors?
Answer: The N-Male 5D-FB connector typically offers a high degree of protection against dust and moisture. However, for outdoor use, additional sealing of the connection point with heat shrink tubing or special weatherproofing tape is recommended.

❓ Question: What is the impedance of this connector?
Answer: Like most professional N-type RF connectors, this connector has an impedance of 50 Ohms, which is standard for most wireless communication systems.

❓ Question: What are the main advantages of using N-type connectors?
Answer: N-type connectors are known for their high reliability, low loss at high frequencies, good mechanical strength, and ability to operate across a wide temperature range, making them ideal for professional equipment.

❓ Question: Are special tools required for installation?
Answer: For crimp versions of the connector, specialized crimping tools and a cable stripper are recommended to ensure the best connection and minimize losses. For screw-type versions, standard tools are usually sufficient.
