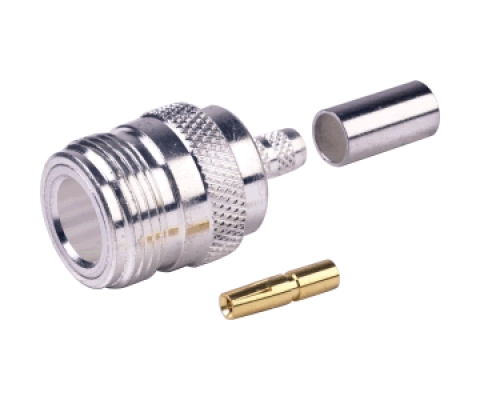

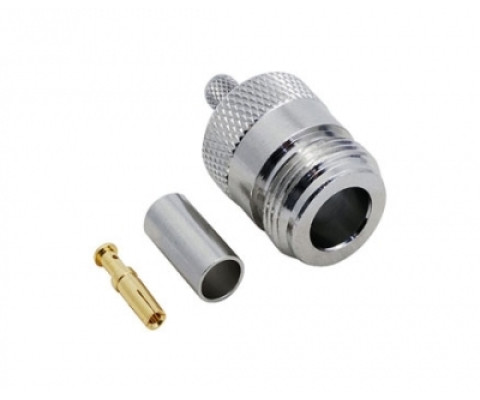

N-Female RG-58 Connector

The N-Female RG-58 connector is a crucial component for establishing a reliable and high-quality coaxial connection in various radio frequency systems. It is designed for use with RG-58 cable, one of the most common coaxial cables for medium distances and power levels. This N-type connector provides excellent protection against external interference and minimizes signal loss, which is critically important for stable equipment operation.

The connector's functionality is based on a precise mechanical design that ensures tight contact between the cable's center conductor and the connector's pin, as well as reliable shielding. N-type connectors feature a threaded coupling mechanism, guaranteeing a robust and vibration-resistant connection. They are rated for 50 Ohm impedance, matching the standard for most RF devices such as antennas, repeaters, signal boosters, and test equipment. This makes the N-Female RG-58 connector indispensable for cellular signal amplification systems, Wi-Fi networks, and professional radio equipment.

This solution targets a wide range of users: from radio amateurs and wireless network installers to engineers working with telecommunication equipment. If you need a dependable connector for RG-58 cable that ensures stable connection and minimal losses, the N-Female RG-58 is an optimal choice. It is perfectly suited for connecting external antennas to 4G/3G modems, routers, and for creating custom cable assemblies. You can easily purchase an N-Female RG-58 connector for your projects, ensuring their longevity and efficiency.

🎁 Expert Advice When installing an N-Female connector onto an RG-58 cable, always ensure proper stripping and crimping (or soldering) of the center contact and the braid. Substandard installation can lead to significant signal loss and reduced performance of the entire system. Use specialized stripping and crimping tools.

💡 FAQ

❓ What is an N-type connector?
An N-type connector is a threaded, coaxial radio frequency connector designed for use in 50 Ohm impedance systems. It is known for its reliability, durability, and ability to operate at high frequencies and power levels.

❓ What cable is this connector designed for?
This connector is specifically designed for RG-58 coaxial cable. It ensures optimal mechanical and electrical compatibility with this cable type.

❓ How do I install an N-Female connector on an RG-58 cable?
Installation involves stripping the cable to specific lengths, attaching the center conductor to the connector's pin (by soldering or crimping), then securing the cable braid to the connector body (by crimping or threading), and assembling all parts. Following the connector manufacturer's instructions is recommended.

❓ What is the impedance of the connector?
The N-Female RG-58 connector has a standard characteristic impedance of 50 Ohms, making it compatible with most RF equipment and cables of the same impedance.

❓ What is the advantage of N-type connectors over other connectors?
N-type connectors provide a more reliable and lower-loss connection compared to smaller connectors (e.g., SMA or F-type), especially at higher frequencies and when increased demands for mechanical strength and weather resistance are present.
